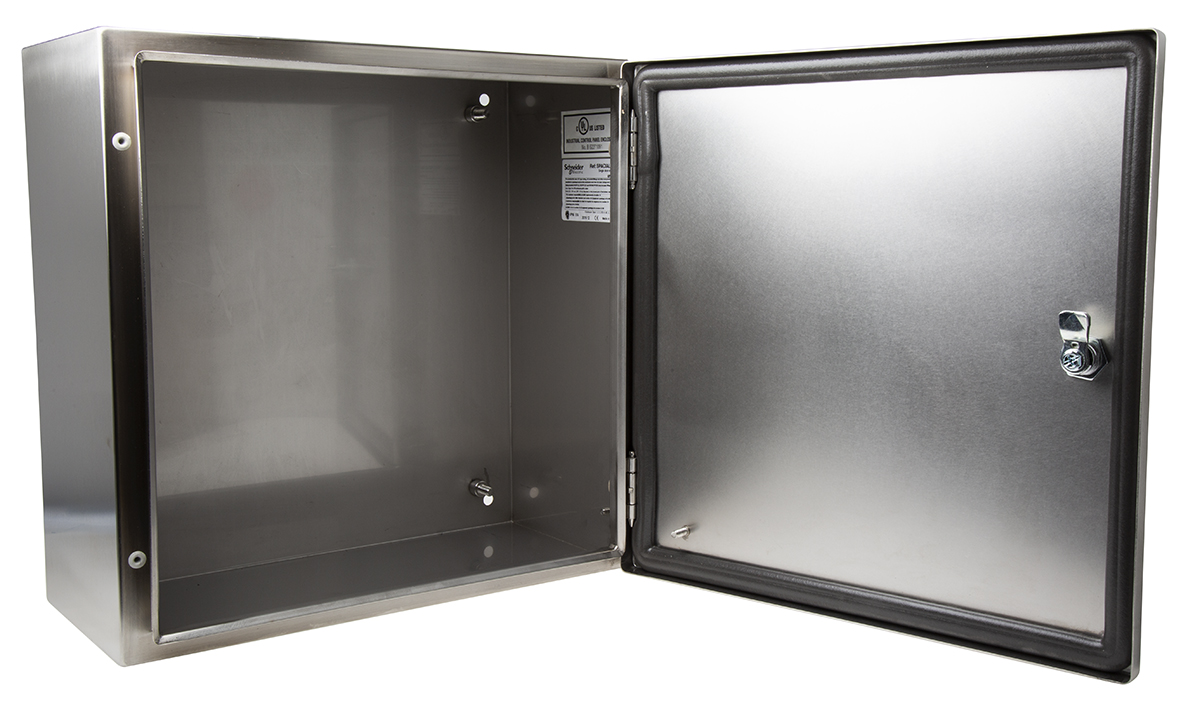

IP66 Wall Boxes Doors open 120° and incorporate a foamed-in polyurethane gasket, suspended on (removable) concealed stainless steel hinges M6 x 15 earth bolts on the body and doors Boxes greater than 400 mm high have two locks Hinges are mounted along height dimension Material 304 / 1.4301 stainless steel IP66 protection Note For Use With refers to compatible chassis plates. Approvals 8888

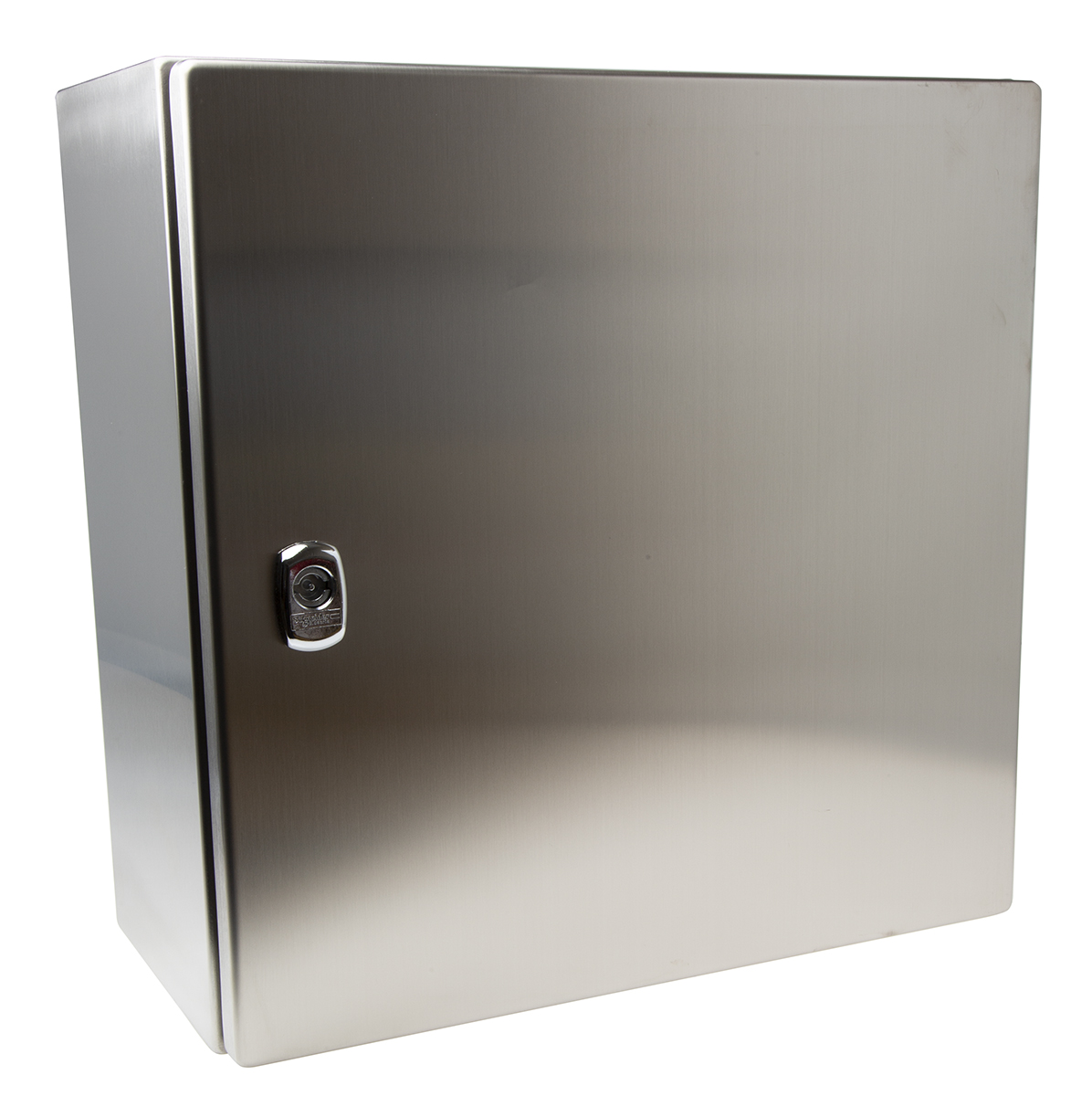

Schneider Electric NSYS3X4420 Spacial S3X IP66 Wall Box, 304 Stainless Steel, 400 x 400 x 200mm

Manufacturer:
Manufacturer Part No:
NSYS3X4420
Enrgtech Part No:
ET14097496
Warranty:
Manufacturer
seller
18 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
AED 2192.62
Order Today!
From: United Kingdom
Est Ship Date: 29 Aug, 2026
Est Fastest Delivery: 30 Aug, 2026
Color:
Gray
Colour:
Unpainted
Design:
Cover Included
Height:
7.874" (200.00mm)
Series:
-
Weight:
-
Package:
Box
Ratings:
IP66
Features:
-
Material:
Metal, Stainless Steel
IK Rating:
IK10
IP Rating:
IP66
Thickness:
-
Fixing Kit:
No
Gland Plate:
No
RoHS Status:
ROHS3 Compliant
Area (L x W):
248in² (1600cm²)
Body Material:
304 Stainless Steel
Chassis Plate:
No
Standards Met:
IEC 60529, IEC 62208, IEC 62262
Container Type:
Enclosure
Door Lock Type:
Double Bar
External Depth:
200mm
External Width:
400 mm
External Height:
400 mm
Size / Dimension:
15.748" L x 15.748" W (400.00mm x 400.00mm)
Special Features:
120° Door Opening
Transparent Door:
No
standardLeadTime:
4 Weeks
Better World Product:
Yes
External Mounting Type:
Bracket
Internal Mounting Type:
Panel
Better World Verification:
Green Premium
Material Flammability Rating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
