Temperature Measurement Range:
-20 ￫ +1000 °C
Detector Resolution:
640 x 480pixel
Display Resolution:
640 x 480pixel
Model Number:

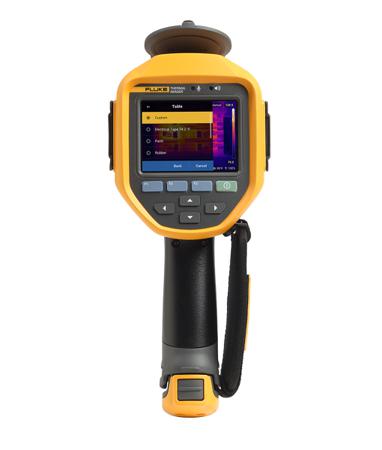

Ti480 PRO
Thermal Sensitivity:
<50mK
Best Temperature Measurement Accuracy:
±2 °C
Focus Type:
Automatic, Manual
Calibrated:
RSCAL
Refresh Rate:
9Hz
Minimum Focus Distance:
150mm
Display Size:
3.5in
Minimum Focus:
150 mm
Auto Capture on Camera:
Yes
Spatial Resolution IFOV:
0.93mrad
Accuracy:
±2 %
Dimensions:
10.9 x 4.8 x 6.5in
Maximum Temperature Measurement:
+1000 °C
Weight:
1.04 (Battery Included)kg
Optional Lenses:
2x Telephoto, 4x Telephoto, Wide-angle
Field of View:
34 (H) x 24 (V)°
Model Number p:
Ti480 PRO
Radiometric Video on Camera:
Yes
Vertical Detector Resolution:
480pixel
Horizontal Field of View:
34°
Depth:
10.9mm
Application:
Thermography
Image Storage:
Cloud, Internal Memory 4 GB, Micro SD Card
Vertical Field of View:
12°
Dimensions L x W x D:
276.86 x 121.92 x 165.1mm
Horizontal Detector Resolution:
640 Pixel
Supplied Software:
Fluke SmartView
Optional Software:
Fluke Connect App for iOS/Android
