Acti9 iC60H RCBOs iC60H RCBO carries out complete protection of final circuits: Protection against short-circuits and cable overloads Protection of persons against electric shock by direct contact (10, 30 mA sensitivities) Protection of persons against electric shock by indirect contact (100 mA sensitivity) Protection of equipment against fires set by leakage currents (100 mA sensitivity)

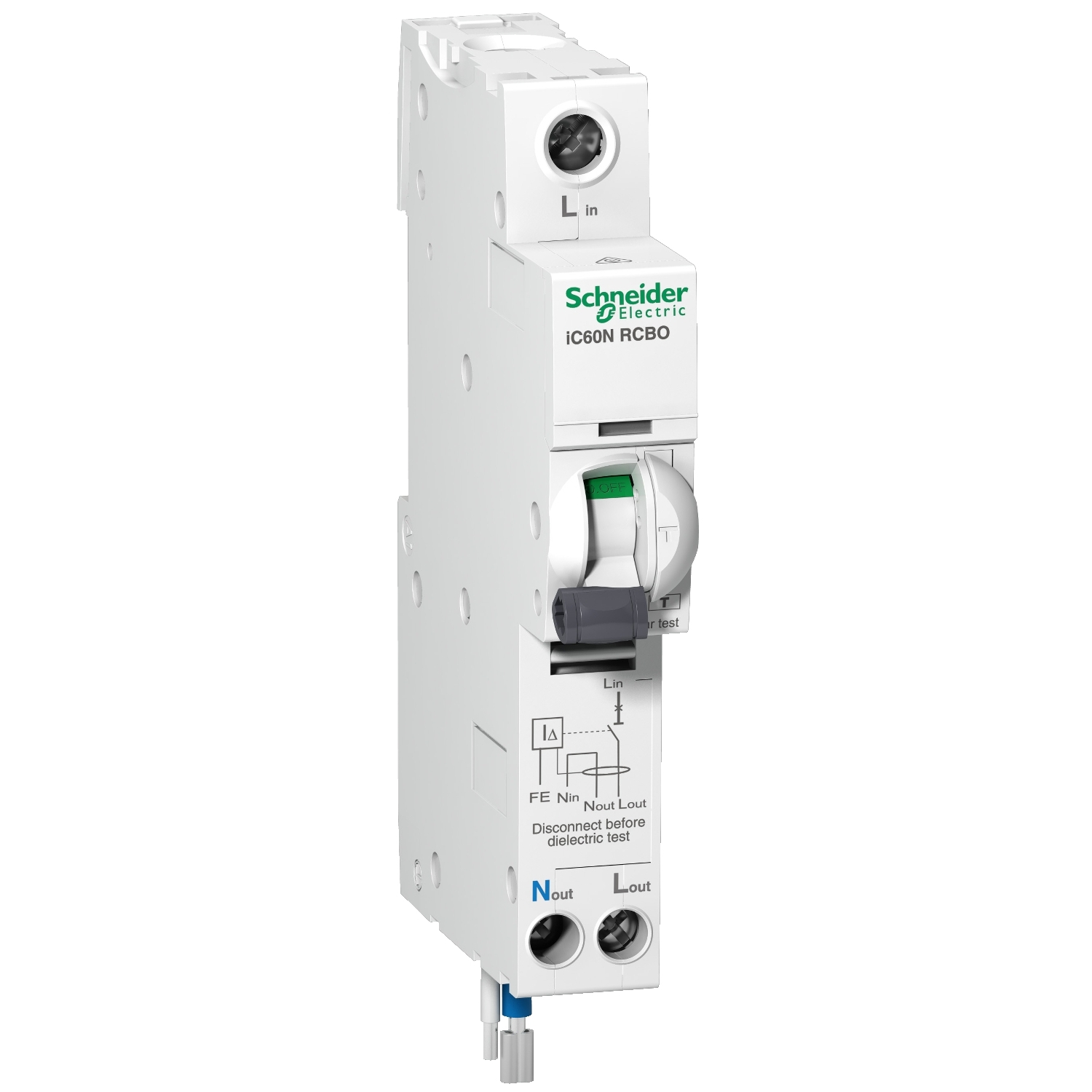

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 20A Current Rating, 1-Pole, 30 mA Trip

Manufacturer:
Manufacturer Part No:
A9D11820
Enrgtech Part No:
ET14150901
Warranty:
Manufacturer
seller
366 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
AED 814.09
Order Today!
From: United Kingdom
Est Ship Date: 06 Sep, 2026
Est Fastest Delivery: 07 Sep, 2026
Quantity
Unit Price (ex VAT)
1
AED 686.24
Order Today!
From: United Kingdom
Est Ship Date: 06 Sep, 2026
Est Fastest Delivery: 07 Sep, 2026
Depth:
77.5mm
Range:
Acti9
Width:
18mm
Series:
iC60H
Mount Type:
DIN Rail
Application:
Distribution
Product Type:
Residual Current Circuit Breaker with Overload Protection
Terminal Type:
Screw
Current Rating:
20A
Number of Poles:
1
Rated AC Voltage:
240V ac
Trip Sensitivity:
30mA
Breaking Capacity:
10kA
Tripping Mechanism:
Thermal Magnetic
Standards/Approvals:
BS EN 61439‐3, BS EN 61009‐1, BS/EN 60947‐2, BS/EN 60898‐1
Better World Product:
Yes
Tripping Characteristics:
Type C
Earth Leakage Protection Type:
Type A
Range:
Acti 9
Series:
iC60H
Break Time:
Instantaneous
Application:
Distribution
Overall Depth:
77.5mm
Overall Width:
18mm
Current Rating:
20A
Mounting Style:
DIN Rail Mount
Overall Length:
110mm
Number of Poles:
1P+N
Rated AC Voltage:
240V
Special Features:
Short Circuit Protection
Trip Sensitivity:
30mA
Overall Dimensions:
110 x 18 x 77.5mm
Tripping Mechanism:
Thermal-Magnetic
Better World Product:
Yes
Circuit Breaker Type:
RCBO
Terminal Contact Type:
Screw
Tripping Characteristics:
Type C
Better World Verification:
Green Premium
Earth Leakage Protection Type:
A
Breaking Capacity at Maximum Voltage Rating:
10 kA
