Complete lighted push switch pushbuttons Range of complete products supplied ready-assembled, Ø 16 mm Protected built-in LED light Standards IEC 947-1, IEC 947-5-1, IEC 947-5-4, EN 60947-5-1, etc. Schneider Electric ZB6 Harmony 16mm A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with ’Faston’/solder connections. Rating U e 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A I th operating temp. -25 to +70°C.

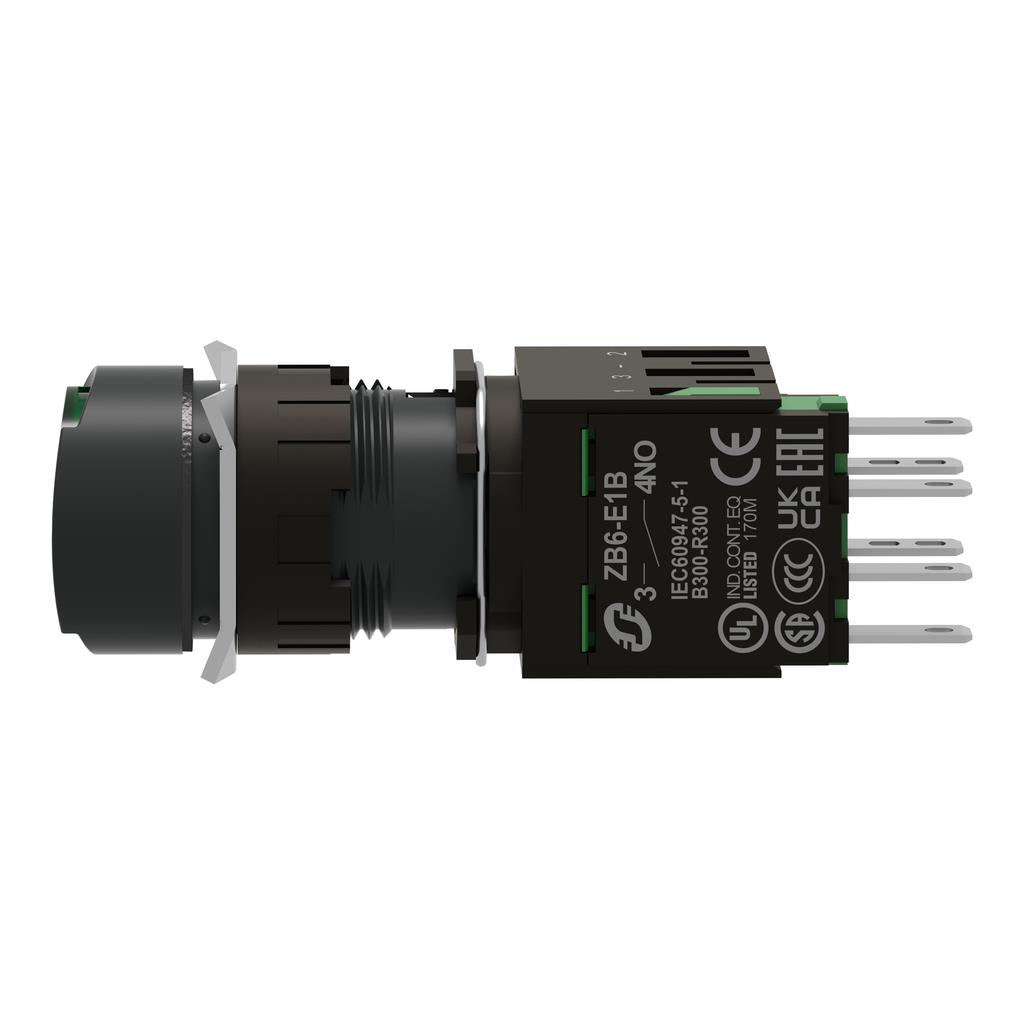

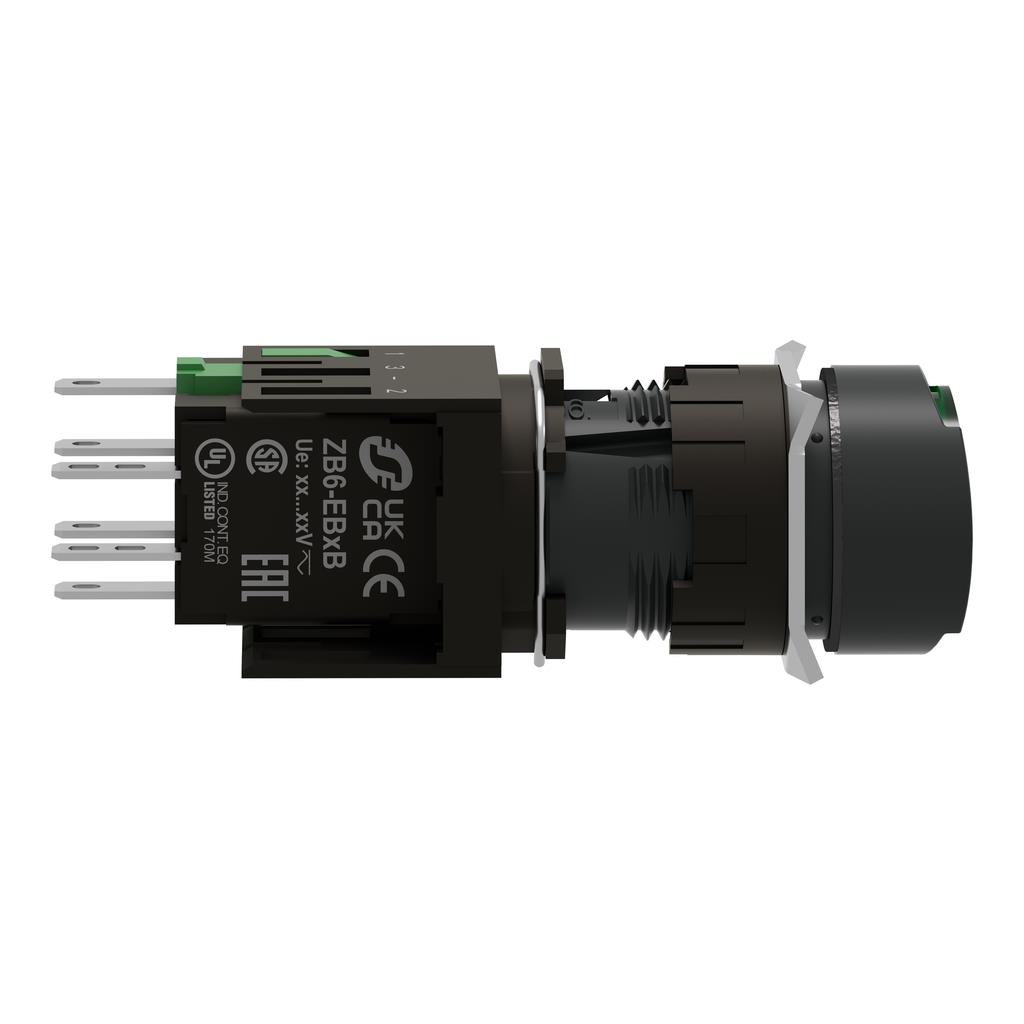

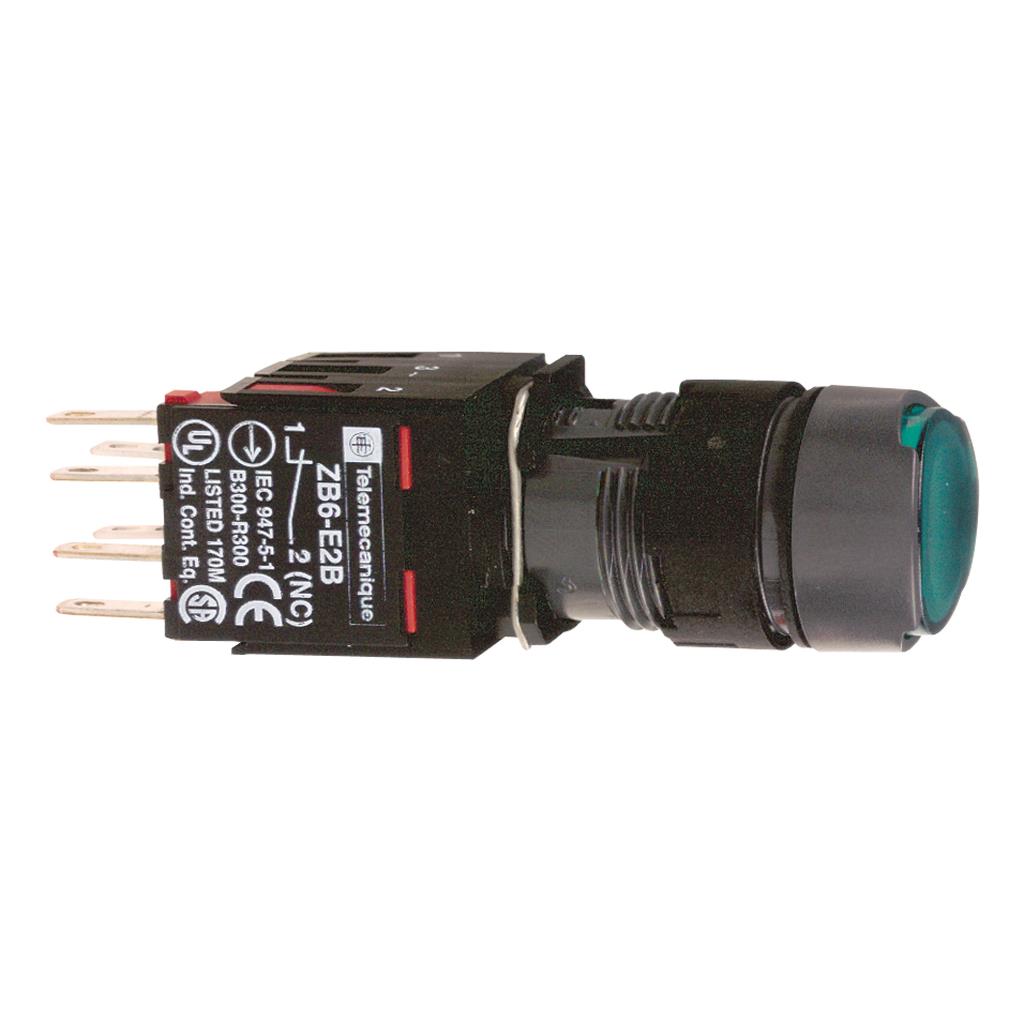

Schneider Electric XB6 Illuminated Green Push Button NO Momentary

Manufacturer:
Manufacturer Part No:
XB6AW3B1B
Enrgtech Part No:
ET14152012
Warranty:
Manufacturer
seller
9 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
AED 214.37
Order Today!
From: United Kingdom
Est Ship Date: 11 Sep, 2026
Est Fastest Delivery: 12 Sep, 2026
ECCN:
EAR99
Type:
Standard, Illuminated
HTSUS:
8536.50.9031
Series:
Harmony XB6
Circuit:
SPST-NO
Features:
-
IP Rating:
IP65
Packaging:
Box
Illuminated:
Yes
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Affected
Actuator Type:
Round, Button, Flush
Mounting Type:
Panel Mount, Front
Terminal Type:
Quick Connect
Voltage Rating:
250V
Electrical Life:
1,000,000 Cycles
Mechanical Life:
-
Switch Function:
Off-Mom
Contact Material:
Silver Alloy
Switch Operation:
Slow Brake
standardLeadTime:
5 Weeks
Push Button Style:
Round
Termination Style:
Quick Connect - 0.110" (2.8mm)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Maximum AC Voltage:
240V
Push Button Colour:
Green
Panel Cut Out Width:
18mm
Voltage Rating - AC:
120 V
Voltage Rating - DC:
125 V
Better World Product:
Yes
Color - Actuator/Cap:
Green
Panel Cut Out Height:
18mm
Push Button Diameter:
18mm
Push Button Material:
Plastic (Bezel)
Contact Configuration:
SPST
Current Rating (Amps):
3A (AC), 220mA (DC)
Manufacturer Part No.:
XB6AW3B1B
Operating Temperature:
-40°C ~ 70°C
Contact Current Rating:
3A
Panel Cut Out Diameter:
16mm
Panel Cutout Dimensions:
Circular - 16.00mm Dia
Illumination Type, Color:
LED, Green
Better World Verification:
Green Premium
Operating Temperature Range:
-25 → +70°C
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-25°C
Illumination Voltage (Nominal):
12 ~ 24 VDC
Moisture Sensitivity Level (MSL):
Not Applicable
