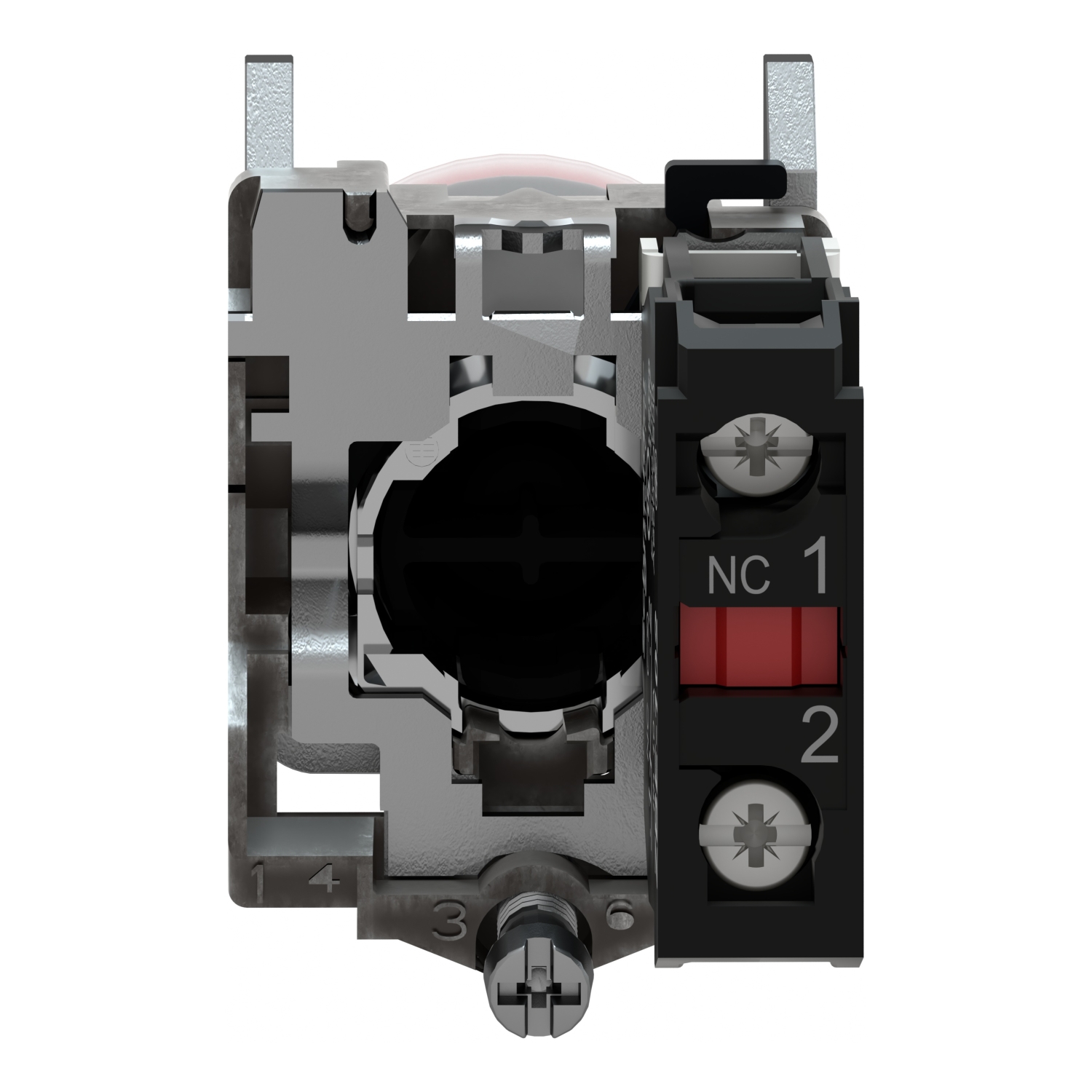

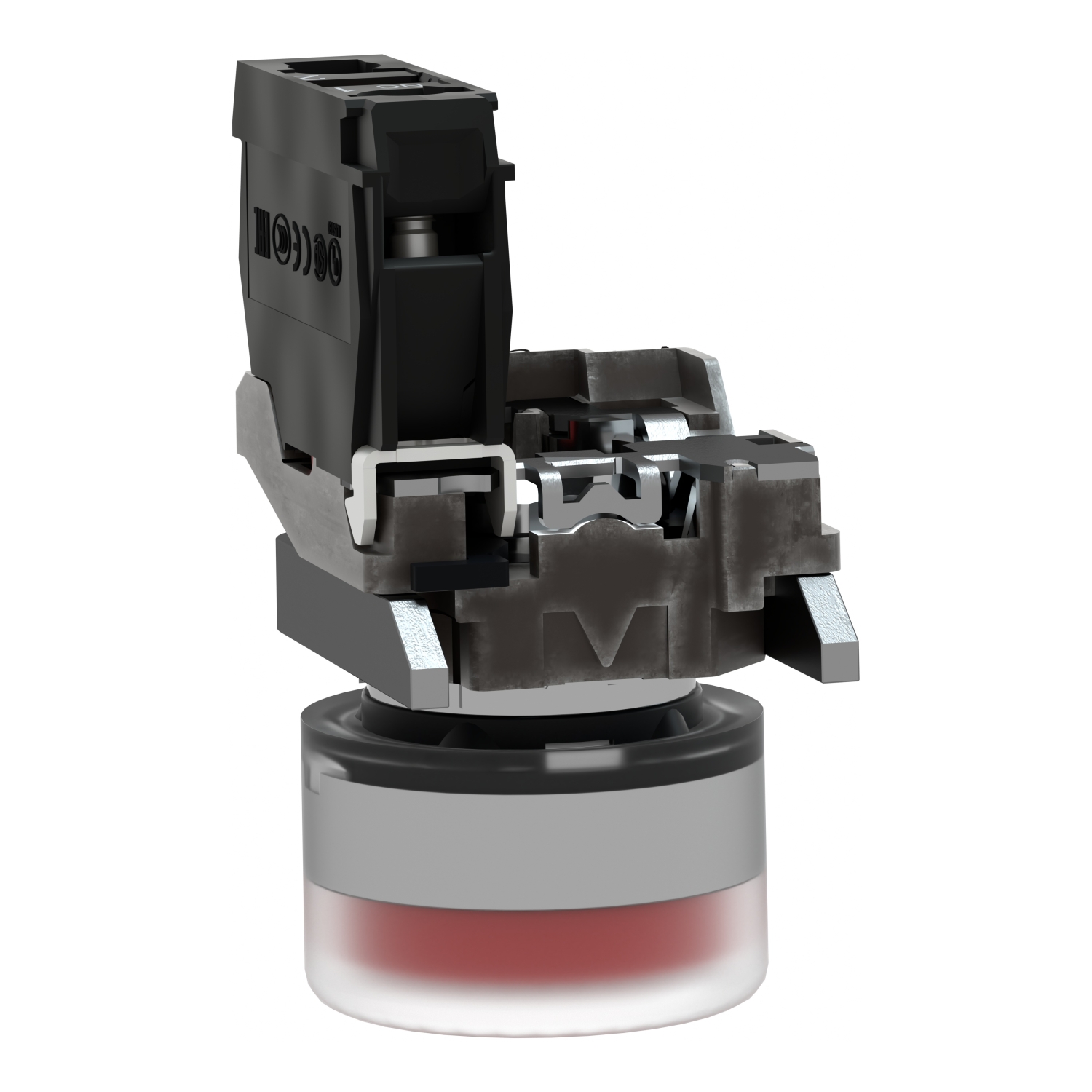

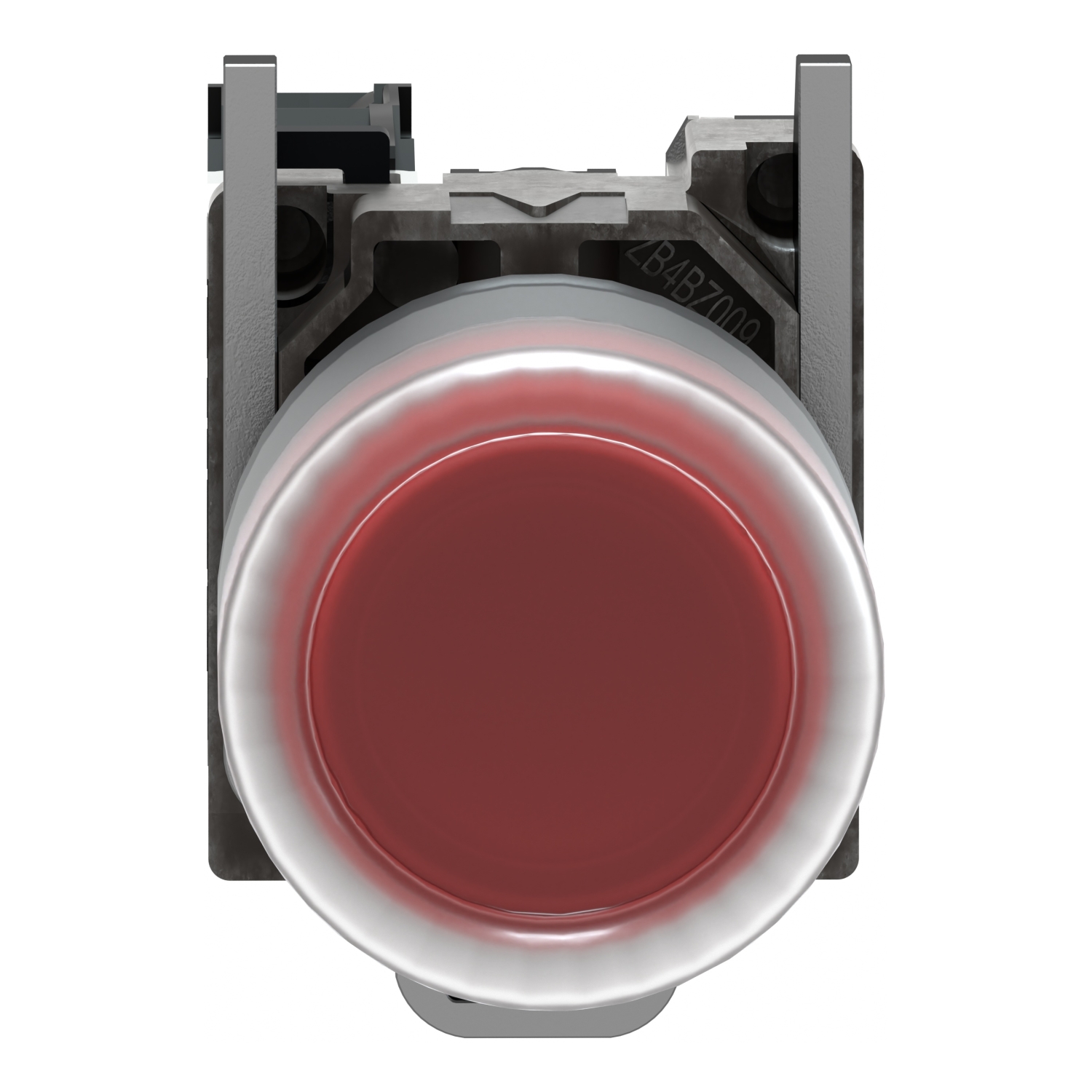

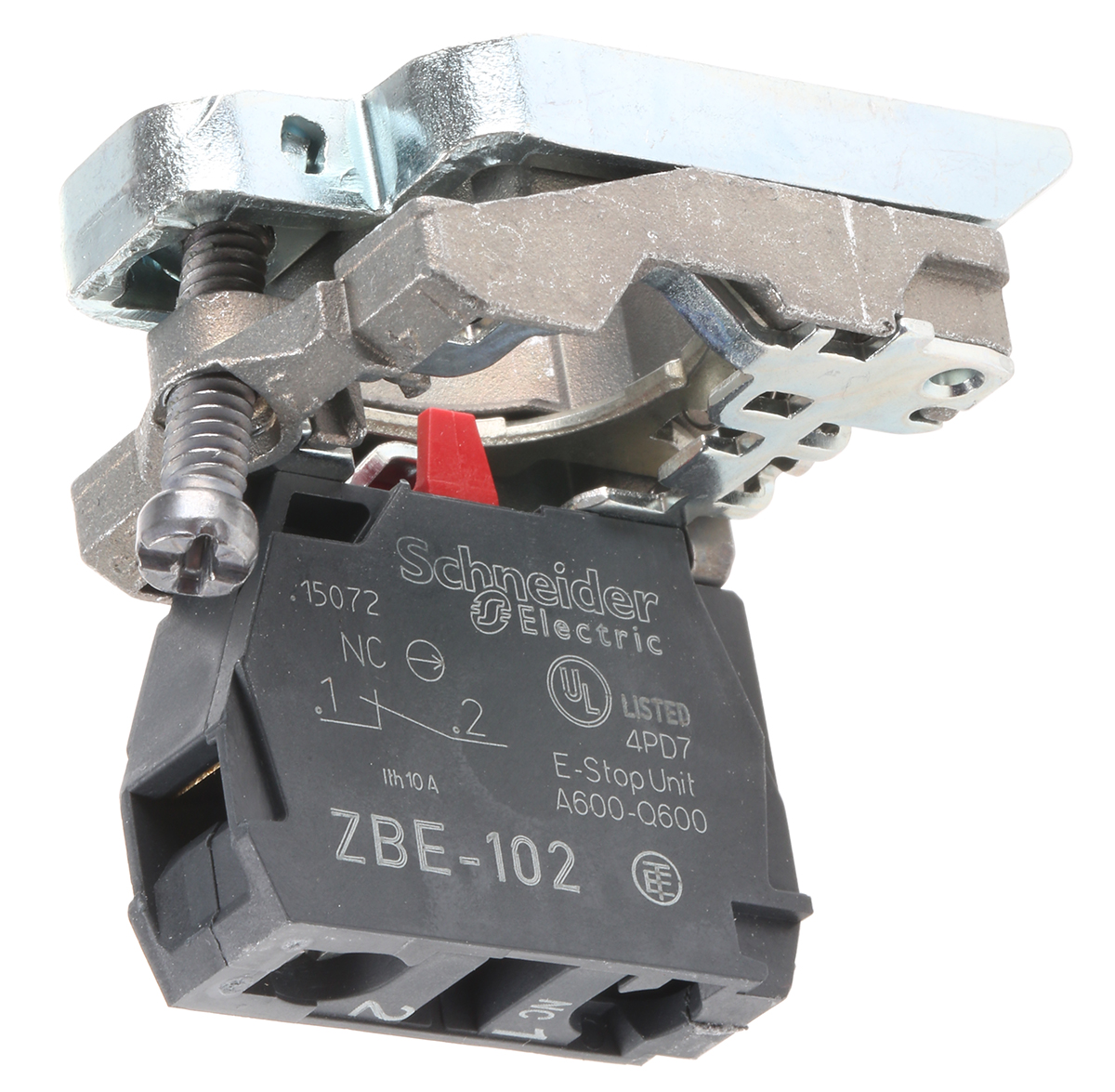

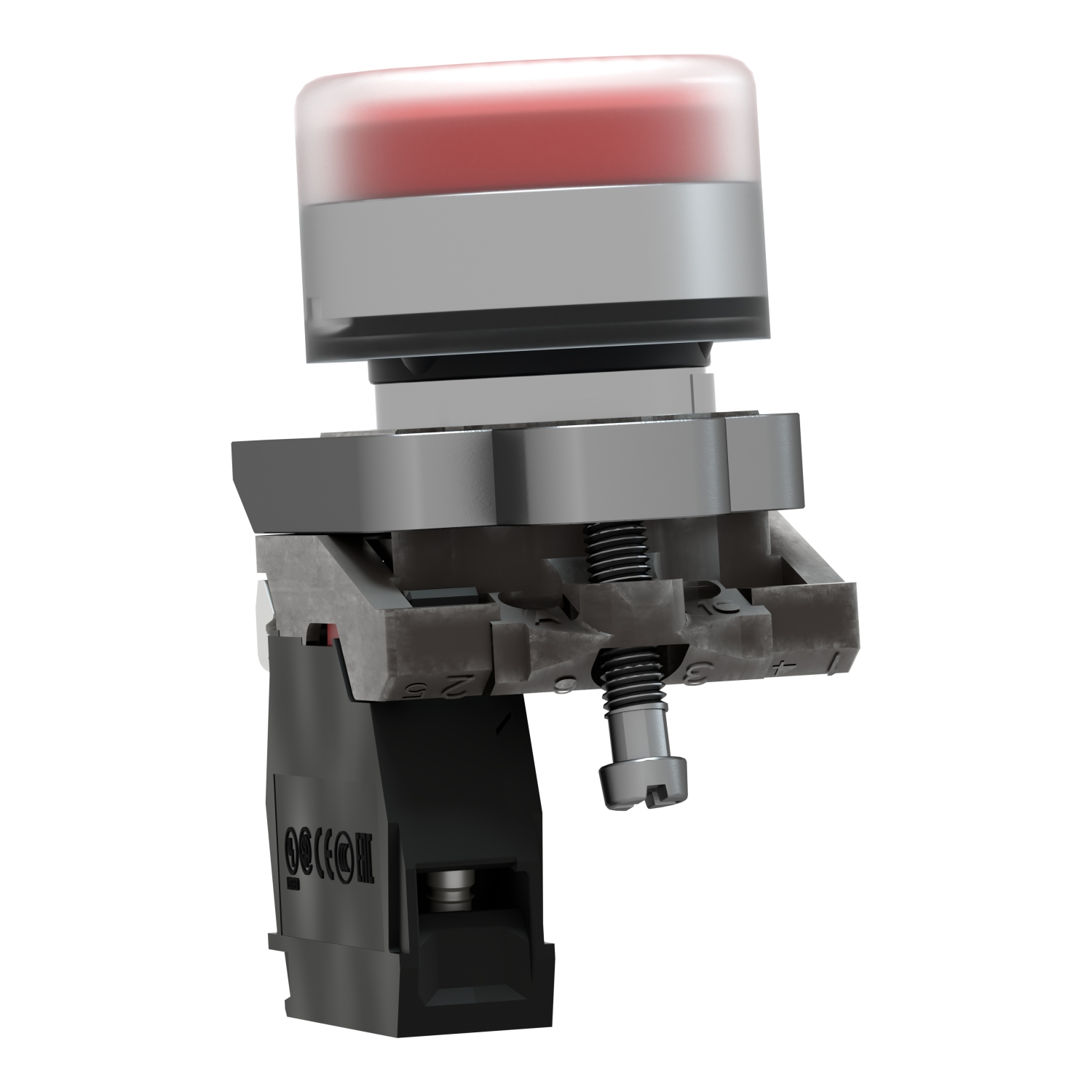

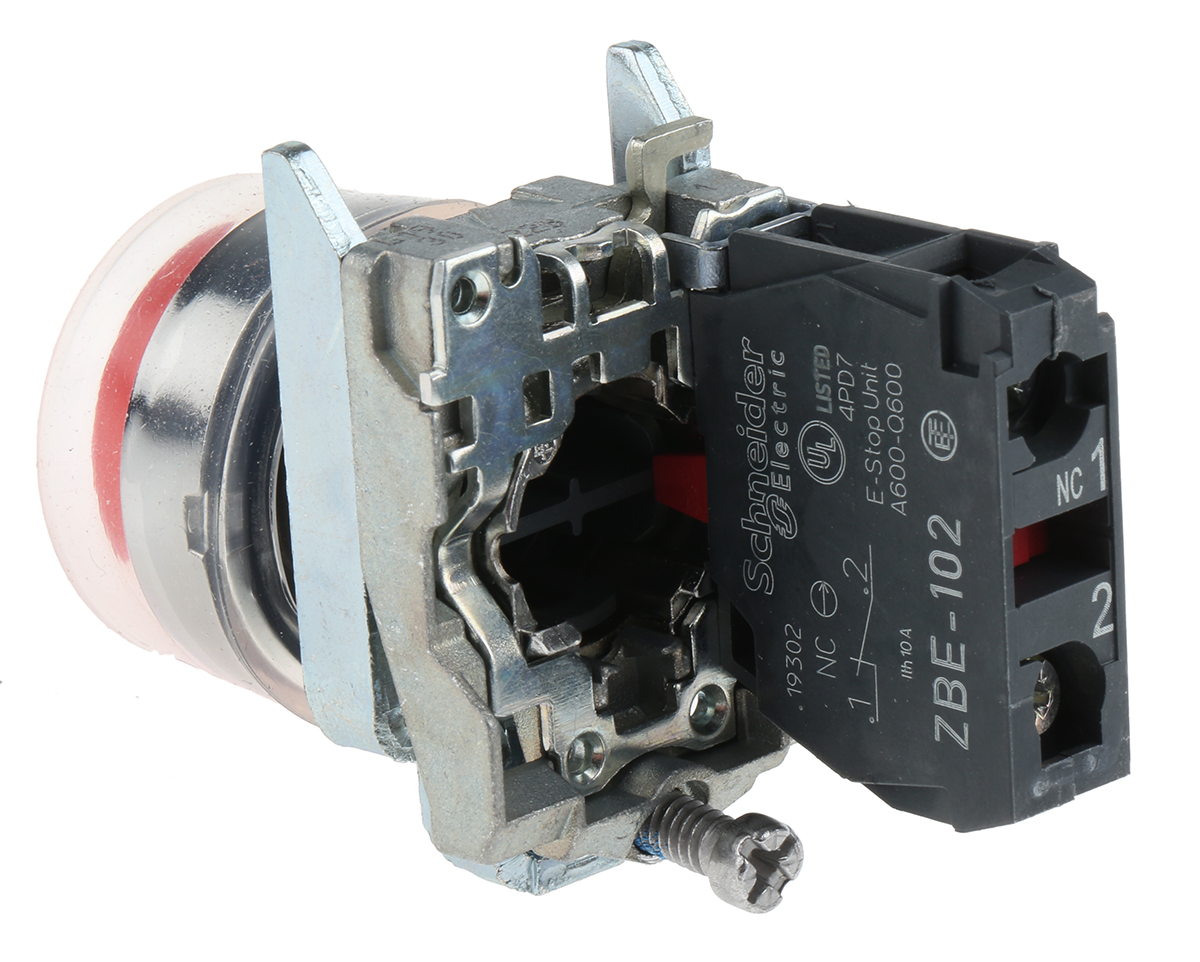

xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return
xb4bp42 Schneider Electric XB4 No Red Push Button NC Spring Return

Silicone Booted Pushbutton, XB4-B Screw clamp terminal connectors,Spring return Supplied with contact blocks Note Manufacurers part number with EX denotation indicates EX rated product Approvals UL; CSA Schneider Electric ZB4-B & XB4-B Harmony® 22mm Range

Schneider Electric XB4 No Red Push Button NC Spring Return

Manufacturer:
Schneider Electric
Manufacturer Part No:
XB4BP42
Enrgtech Part No:
ET14151988
Warranty:
Manufacturer
seller
14 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
AED 128.64
Order Today!
From: United Kingdom
Est Ship Date: 12 Sep, 2026
Est Fastest Delivery: 13 Sep, 2026
ECCN:
EAR99
Type:
Standard
HTSUS:
8536.50.9035
title:
XB4BP42
Series:
Harmony XB4
Circuit:
SPST-NC
Features:
-
IP Rating:
IP66, IP67, IP69(IP69K)
Packaging:
Box
Illuminated:
No
RoHS Status:
ROHS3 Compliant
Actuator Type:
Round, Button, Flush
Mounting Type:
Panel Mount, Front
Terminal Type:
Screw
Electrical Life:
1,000,000 Cycles
Mechanical Life:
10,000,000 Cycles
Switch Function:
Off-On
Contact Material:
Silver Alloy
standardLeadTime:
5 Weeks
Push Button Style:
Round
Termination Style:
Screw Terminal
Ingress Protection:
IP66 - Dust Tight, Water Resistant
Maximum AC Voltage:
600V
Maximum DC Voltage:
600V
Push Button Colour:
Red
Voltage Rating - AC:
120 V
Voltage Rating - DC:
125 V
Better World Product:
Yes
Color - Actuator/Cap:
Red
Contact Configuration:
SPST
Current Rating (Amps):
6A (AC), 550mA (DC)
Manufacturer Part No.:
XB4BP42
Operating Temperature:
-40°C ~ 70°C
Panel Cut Out Diameter:
22mm
Panel Cutout Dimensions:
Circular - 22.00mm Dia
Illumination Type, Color:
-
Better World Verification:
Green Premium
Operating Temperature Range:
-40 → +70°C
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-40°C
Illumination Voltage (Nominal):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
