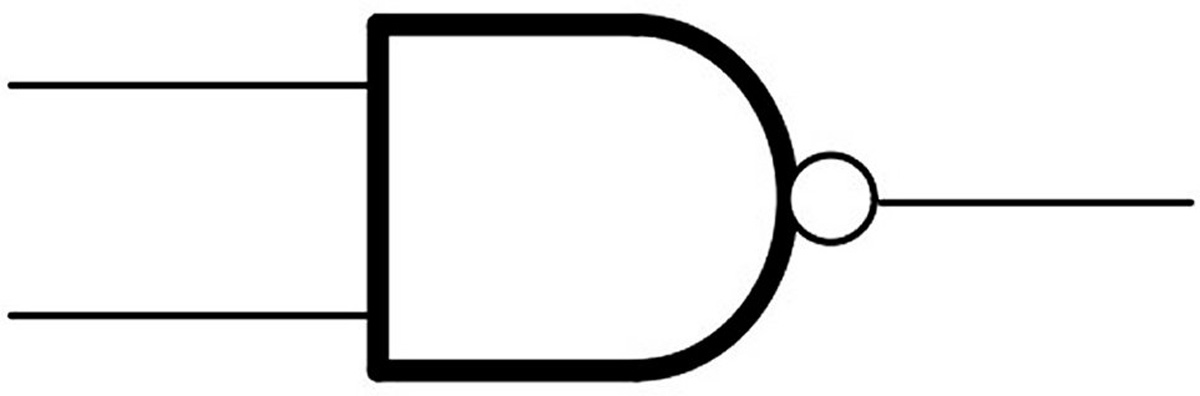

DiodesZetex 74AHC00S14-13, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin SOIC

DiodesZetex 74AHC00S14-13, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin SOIC

Manufacturer:

Manufacturer Part No:

74AHC00S14-13

Enrgtech Part No:

ET16759335

Warranty:

Manufacturer

AED 1.36

Checking for live stock

Logic Function:

NAND

Mounting Type:

Surface Mount

Number of Elements:

Reference Voltage:

Schmitt Trigger Input:

Yes

Package Type:

SOIC

Pin Count:

Logic Family:

AHC

Input Type:

Schmitt Trigger

Maximum Operating Supply Voltage:

5.5 V

Maximum High Level Output Current:

Micro-Fit 3.0 Crimp Terminals(43031)

Maximum Propagation Delay Time @ Maximum CL:

14.5 ns @ 50 pF

0900766b812cd403.pdf(datasheets)

0900766b81644fcb.pdf(datasheets)
