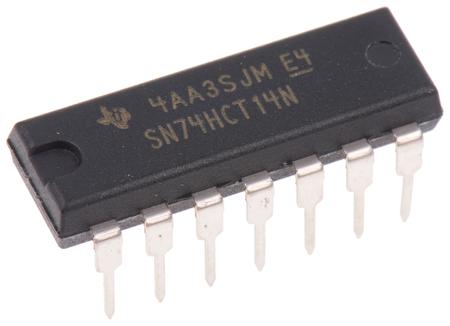

Texas Instruments SN74HCT14N Hex Schmitt Trigger Inverter, 14-Pin PDIP

Manufacturer:

Manufacturer Part No:

SN74HCT14N

Enrgtech Part No:

ET11095664

Warranty:

Manufacturer

AED 2.22

Checking for live stock

Logic Function:

Inverter

Input Type:

Schmitt Trigger

Number of Elements per Chip:

Schmitt Trigger Input:

Yes

Maximum Propagation Delay Time @ Maximum CL:

30 ns @ 5.5 V, 32 ns @ 4.5 V

Maximum High Level Output Current:

Micro-Fit 3.0 Crimp Terminals(43031)

Maximum Low Level Output Current:

4mA

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

Logic Family:

HCT

Dimensions:

10 x 5 x 10.5mm

0900766b81644fcb.pdf(datasheets)
