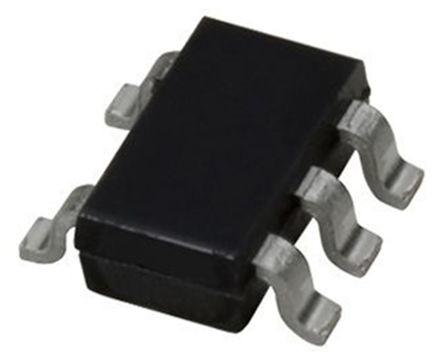

Texas Instruments SN74LVC1G14DCKT Schmitt Trigger CMOS Inverter, 5-Pin SC-70

Manufacturer:

Manufacturer Part No:

SN74LVC1G14DCKT

Enrgtech Part No:

ET100144633

Warranty:

Manufacturer

AED 2.60

Checking for live stock

Logic Function:

Inverter

Input Type:

Schmitt Trigger

Number of Elements per Chip:

Schmitt Trigger Input:

Yes

Maximum Propagation Delay Time @ Maximum CL:

5 ns @ 5 V, 5.5 ns @ 3.3 V

Maximum High Level Output Current:

3.2 x 1.6 x 1mm

Maximum Low Level Output Current:

32mA

Mounting Type:

Surface Mount

Package Type:

SC-70

Pin Count:

Logic Family:

LVC

Dimensions:

2 x 1.25 x 0.9mm

0900766b81644fcb.pdf(datasheets)

A700000009231985.pdf(datasheets)
