The Rittal AX compact enclosure is a basic enclosure. This enclosure can be used for many purposes like to house various electronic, electrical and mechanical components, equipment, and devices. An extra protection is provided to the device or equipment or while the equipment is in operation and prevent the ingress of environmental contaminants such as dust and water. The AX compact enclosure is made of sheet steel and the mounting plate is zinc-plated. It offers flexibility and safety in assembly and interior installation. Maximum data quality and consistency in engineering offered IP 66 protection NEMA 4 protection category

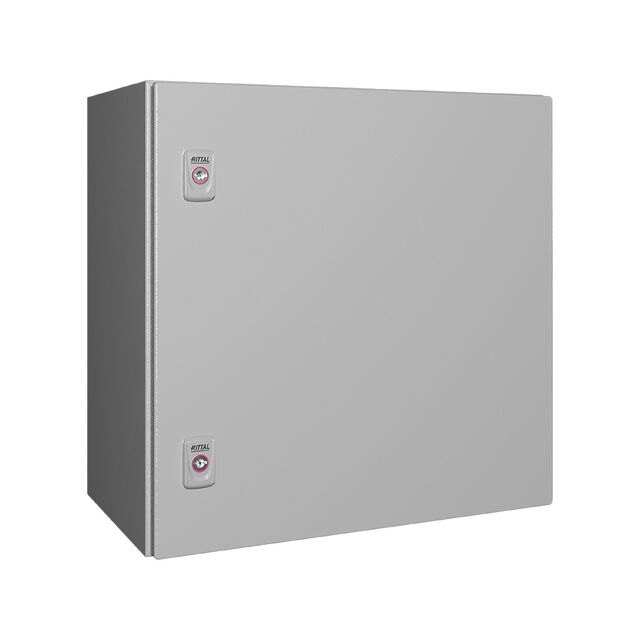

Rittal Ax, Steel Enclosure, 500 x 500 x 300mm

Manufacturer:
Manufacturer Part No:
1350000
Enrgtech Part No:
ET20008372
Warranty:
Manufacturer
seller
7 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
AED 1057.86
Order Today!
From: United Kingdom
Est Ship Date: 11 Sep, 2026
Est Fastest Delivery: 12 Sep, 2026
ECCN:
EAR99
Color:
Light Gray
HTSUS:
7310.29.0065
Range:
Ax Compact Enclosure
title:
1350000
Colour:
RAL7035
Design:
Hinged Door
Height:
11.811" (300.00mm)
Series:
AX
Weight:
-
Ratings:
IP66, NEMA 1,3R,4,12
Features:
-
Material:
Metal, Steel
RAL Code:
RAL 7035
Shielded:
No
IK Rating:
IK10
IP Rating:
IP66
Packaging:
Box
Thickness:
0.059" (1.50mm)
Lid Colour:
Grey
RoHS Status:
ROHS3 Compliant
Area (L x W):
388in² (2500cm²)
REACH Status:
REACH info available upon request
Body Material:
Sheet Steel
Shipping Info:
-
Container Type:
Enclosure
External Width:
500 mm
External Height:
500 mm
External Length:
500 mm
Gasket Material:
Foamed Polyurethane
Size / Dimension:
19.685" L x 19.685" W (500.00mm x 500.00mm)
Transparent Door:
No
standardLeadTime:
5 Weeks
External Dimensions:
500 x 500 x 300mm
Material Flammability Rating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
