Width:
293mm
Height:
107mm
Length:
266mm
Weight:
2.5kg

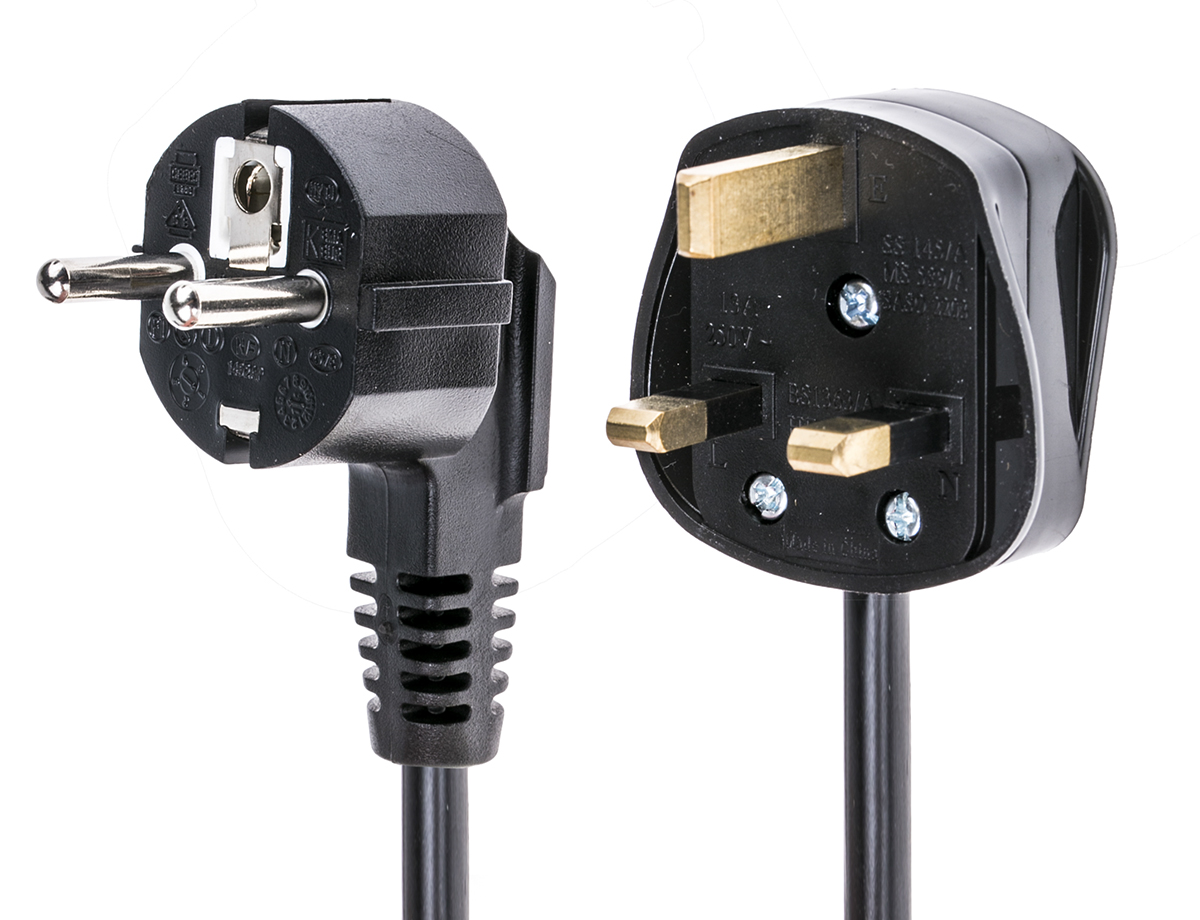

Plug Type:
UK
Model Number:
AFG21225

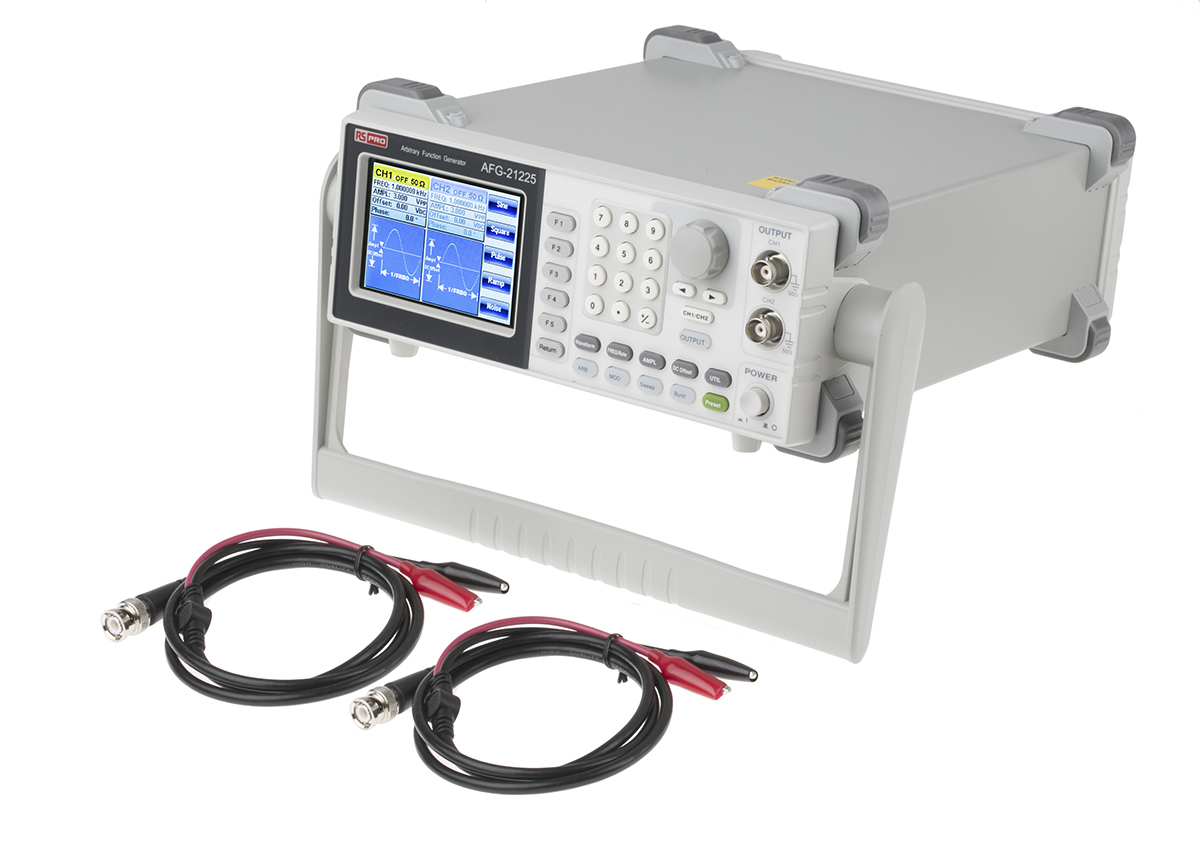

Product Type:
Function Generator & Counter
FM Modulation:
Yes
Interface Type:
USB
Variable Sweep:
Yes
Output Amplitude:
0.002 to 10 V Pk-Pk, 0.001 to 10 V Pk-Pk, 0.001 to 5 V Pk-Pk, 0.002 to 20 V Pk-Pk
Digital Frequency:
Yes
Number of Channels:
2
Time Base Accuracy:
±20 ppm
Standards/Approvals:
CE
Digital Amplitude and Offset:
Yes
Internal Linear and Log Sweep:
Yes
Maximum Operating Temperature:
40°C
Minimum Operating Temperature:
0°C
Maximum Frequency Range Sinewave:
25MHz
Minimum Frequency Range Sinewave:
1μHz
Maximum Frequency Range Triangle/Saw:
1MHz
Internal and External Amplitude Modulation:
Yes
Maximum Frequency Range Square Pulse/Arbitrary Waveform:
25MHz
Minimum Frequency Range Square Pulse/Arbitrary Waveform:
1Hz
