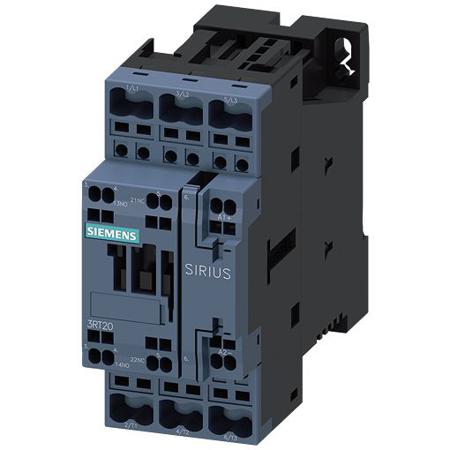

Product Type:
Contactor
Coil Voltage:
72 V dc
Number of Poles:
3
Contact Voltage:
690V
Contact Current:
40A
Power Rating:
11kW
Series:
3RT2
Function:
Mirror Contact, Pipe S-Type
Mount Type:
DIN Rail
Normal State Configuration:
3.2 x 1.3 x 1mm
Auxiliary Contact Configuration:
3.2 x 1.3 x 1mm
Number of Auxiliary Contacts:
2
Terminal Type:
Spring Loaded
Contactor Application:
AC-3, AC-3e, Traction Contactor
Operational Current Ie:
25A
Minimum Operating Temperature:
-40°C
Control Circuit Voltage Uc:
72 V
Maximum Operating Temperature:
70°C
Width:
45 mm
Standards/Approvals:
ABS, CCC, CE, CSA, EAC, IEC 60947-4-1, IEC 60947-5-1, IEC 61508, PRS, RCM, RMRS, UKCA, UL, DNV
Length:
102mm
Depth:
107mm
Pole and Throw Configuration:
3P
