Width:
75mm
Height:
207mm
Length:
34mm
Weight:
283g
True RMS:
Yes
Dimensions:
207 x 75 x 34mm
Glove Type:
40 → 400 A

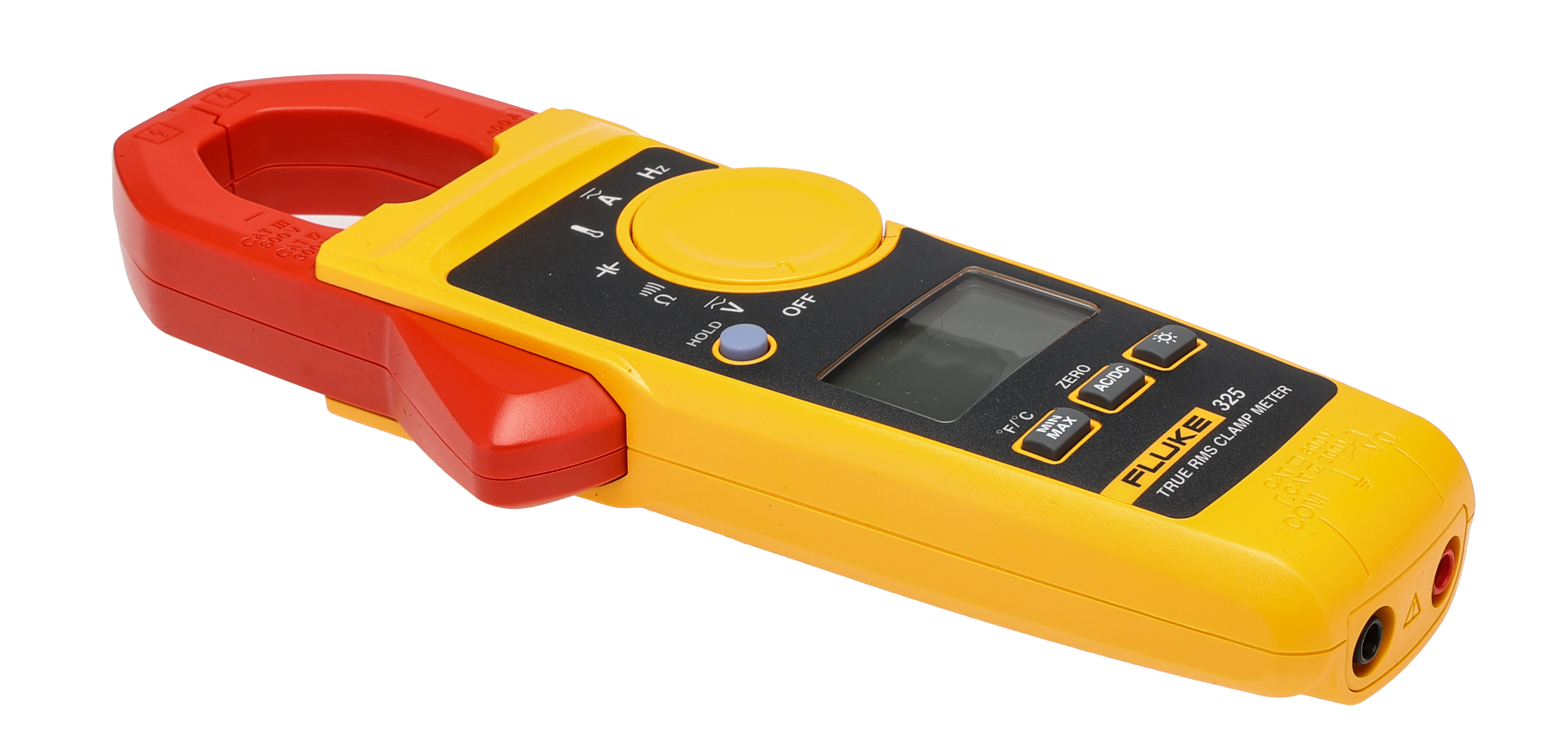

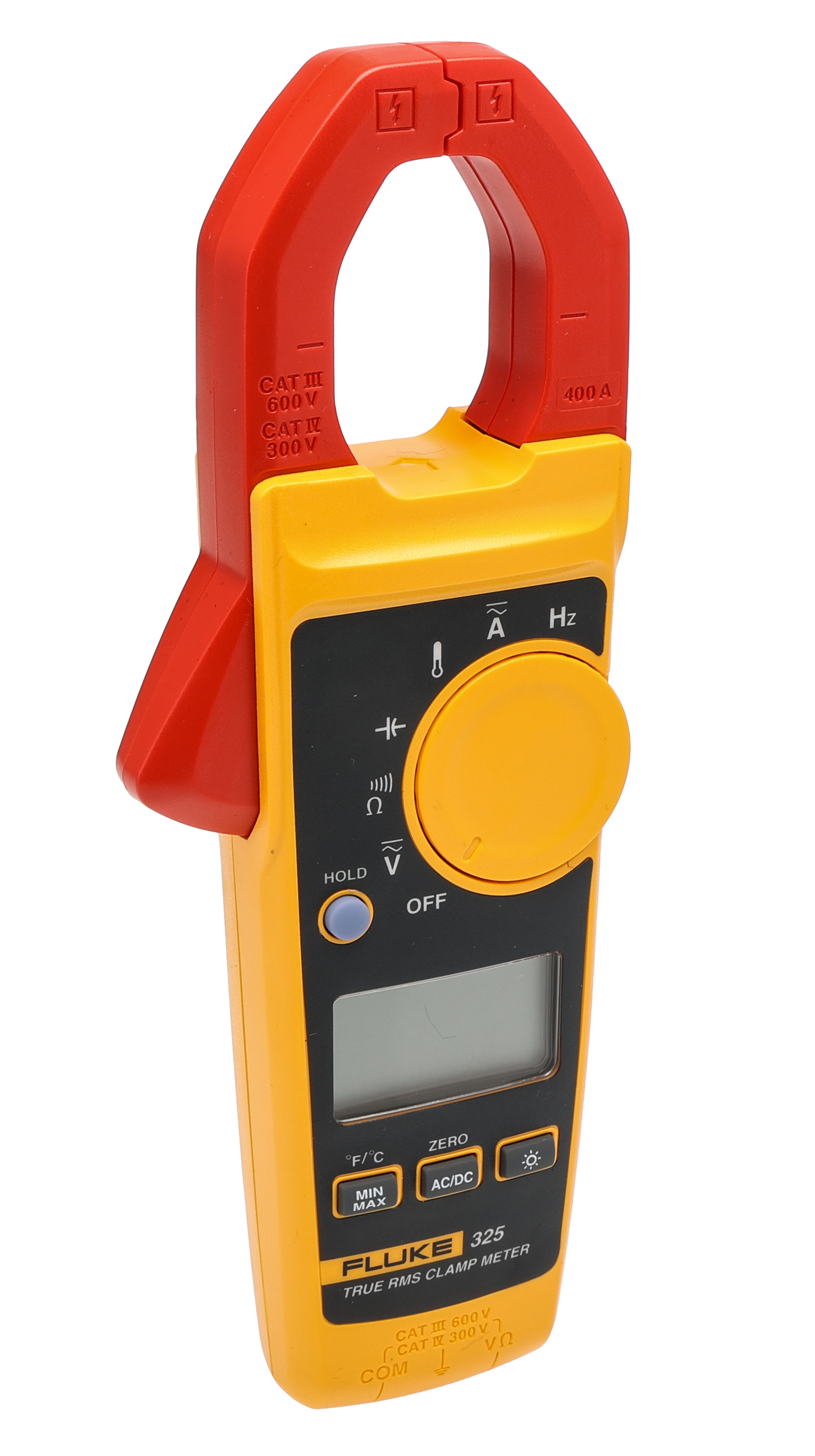

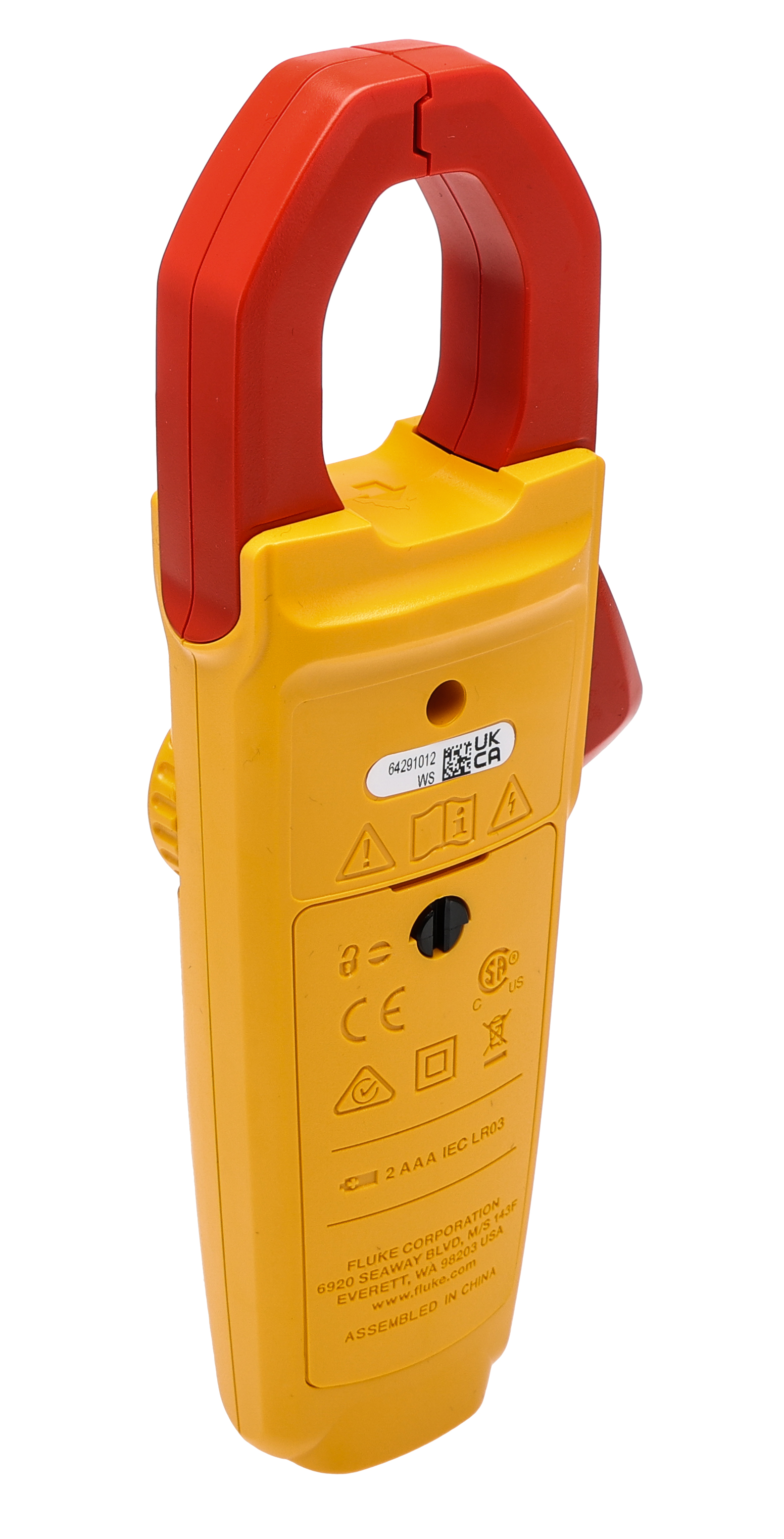

Model Number:
325
Clamp Meter Type:
AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Best AC Current Accuracy:
±2% + 5 digit
Best AC Voltage Accuracy:
±1.5% + 5 digit
Best DC Current Accuracy:
±2% + 5 digit
Best DC Voltage Accuracy:
±1% + 5 digit
AC Current Measurement Range:
40 → 400 A
AC Voltage Measurement Range:
600 V
Maximum Operating Temperature:
+400°C
Minimum Operating Temperature:
-10°C
Best Resistance Measurement Accuracy:
1.0% ± 5 digits
Absolute Maximum AC Current Measurement:
400A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
400A dc
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
40kΩ
