Absolute Maximum AC Current Measurement:
400A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum Resistance Measurement:
40MΩ

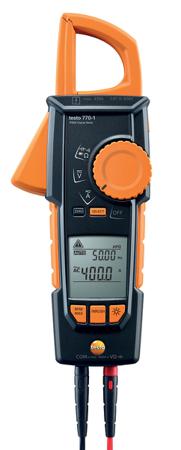

Model Number:
770-1
Calibrated:
RSCAL
AC Current Measurement Resolution:
100mA
DC Current Measurement Resolution:
100mA
Best DC Current Accuracy:
±(2% rdg + 5dgts)
Clamp Meter Type:
AC/DC Clamp Meter
Best AC Current Accuracy:
±(2% rdg + 5dgts)
Best AC Voltage Accuracy:
±(1% rdg + 3dgts)
Best DC Voltage Accuracy:
±(0.8% rdg + 3dgts)
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
True RMS:
Yes
DC Voltage Measurement Resolution:
1mV
Minimum Operating Temperature:
-10°C
Safety Category Level:
CAT III, CAT IV
Height:
43mm
Dimensions:
243 x 96 x 43mm
AC Voltage Measurement Resolution:
1mV
AC Current Measurement Range:
0.1 → 400 A
AC Voltage Measurement Range:
0.001 → 600 V
Weight:
302g
Battery Type:
AAA
Resistance Measurement Resolution:
100mΩ
Length:
243mm
Width:
96mm
Power Source:
Battery
Safety Category Voltage:
600 V, 1000V
Maximum Operating Temperature:
+50°C
Display Type:
LCD
Safety Category:
CAT III 1000 V, CAT IV 600V
Glove Type:
0.1 → 400 A
