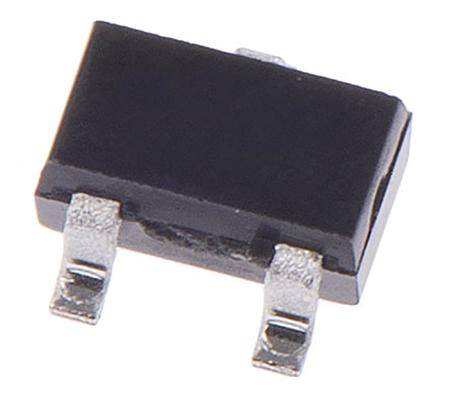

Transistor Type:
NPN
Maximum DC Collector Current:
100 mA
Maximum Collector Emitter Voltage:
45 V
Package Type:
SOT-323 (SC-70)
Mounting Type:
Surface Mount
Maximum Power Dissipation:
150 mW
Minimum DC Current Gain:
110
Transistor Configuration:
Single
Maximum Collector Base Voltage:
50 V
Maximum Emitter Base Voltage:
6 V
Maximum Operating Frequency:
100 MHz
Pin Count:
3
Number of Elements per Chip:
1
Dimensions:
2.2 x 1.35 x 0.9mm
Maximum Operating Temperature:
+150 °C
Mount Type:
Surface
Product Type:
Diode
Package Type:
TO-263
Maximum Continuous Forward Current If:
10A
Peak Reverse Repetitive Voltage Vrrm:
170V
Diode Configuration:
2x Common Cathode Pair
Rectifier Type:
Schottky
Pin Count:
3
Peak Reverse Current Ir:
3mA
Peak Non-Repetitive Forward Surge Current Ifsm:
100A
Maximum Forward Voltage Vf:
0.74V
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
175°C
Width:
10.2 mm
Height:
1.8mm
Standards/Approvals:
RoHS
Length:
8.9mm
Automotive Standard:
AEC-Q101
